In the realm of electrical distribution, safeguarding circuits from overcurrent and faults is paramount. Among the various solutions available, SELVO HRC fuse switch units stand out for their advanced technology and reliability. To appreciate the benefits of SELVO HRC fuse switch units, it’s essential to delve into their technological underpinnings and understand how they enhance electrical safety and performance.

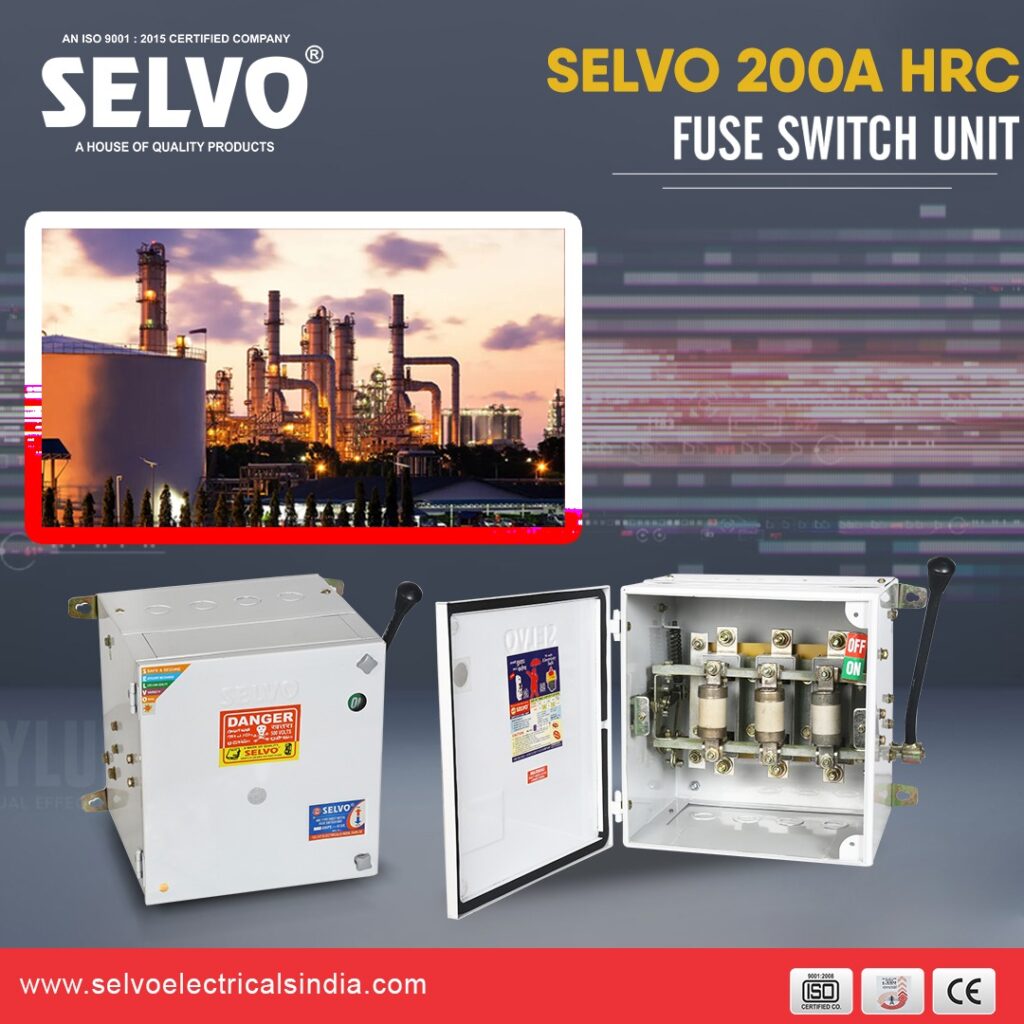

hrc Fuse switch units Construction

SELVO Presents comprehensive range of hrc Fuse switch units which are designed as per the short circuit breaking capacity of 80 KA and is suitable for utilization category of AC-22A. ( as per guidelines of IS/IEC:60947-1&3 ) industrial standards using high grade raw materials . Here are the some few features of the product series .

  1. Fitted with sturdy side operating handle which drives the quick make & break mechanism incoporating operating springs .
  2. The enclosure is fabricated in heavy guage CRCA sheet steel , rust protected , phosphatized and powder coated
  3. Enclosures are fitted with removable top & bottom end plates provided with conduit knockouts for cable entry and exit .
  4. Ample cabling space provided inside the enclosures for proper wiring connections
  5. Front accessible door , fitted with dust-excluding gasket , is interlocked to prevent opening when the switch is in ON position .
  6. Silver and nickel plated terminals suitable for aluminium cable / busbar termination .
  7. Contacts are made of electrolytic copper , electro-plated with silver , for better contact and greater resistance to corrosion
  8. Fitted with heavy duty HRC Fuse switch units for proper switching and protection from overcurrent faults .
  9. Positive ON-OFF indication is provided on switch door
  10. Foot stand provision for mounting the fuse switch units in proper way on harder surface .

HRC FUSE SWITCH UNIT WORKING PRINCIPLE

Selvo HRC fuse switch units are sophisticated devices used in electrical distribution systems to protect electrical circuits from overcurrents and short circuits. ThIS stands for High Rupturing Capacity, which signifies the unit’s ability to handle high fault currents without failure. These fuse switch units combine the functionality of both fuses and switches, providing dual benefits in a single unit.

The core function of an HRC fuse is to disconnect the circuit when excessive current flows, thereby preventing damage to the electrical equipment and minimizing the risk of fire or other hazards. By incorporating a switch mechanism, Selvo HRC fuse switch units also offer the added advantage of isolating the circuit for maintenance or repair without needing to remove the fuse.

HRC

CONCLUSION

In summary, Selvo HRC fuse switch units exemplify the convergence of efficiency and safety in electrical engineering. Their advanced design, high rupturing capacity, and integrated switch mechanism offer significant advantages in terms of performance and reliability. As electrical systems become increasingly complex and demanding, these units provide a vital solution for ensuring both operational efficiency and safety. By choosing Selvo HRC fuse switch units, engineers and facility managers can achieve a higher level of confidence in their electrical systems, knowing that they are protected by some of the most advanced technology available in the field.
